Tableau/Opentext

Tableau Forensic Imager TX1

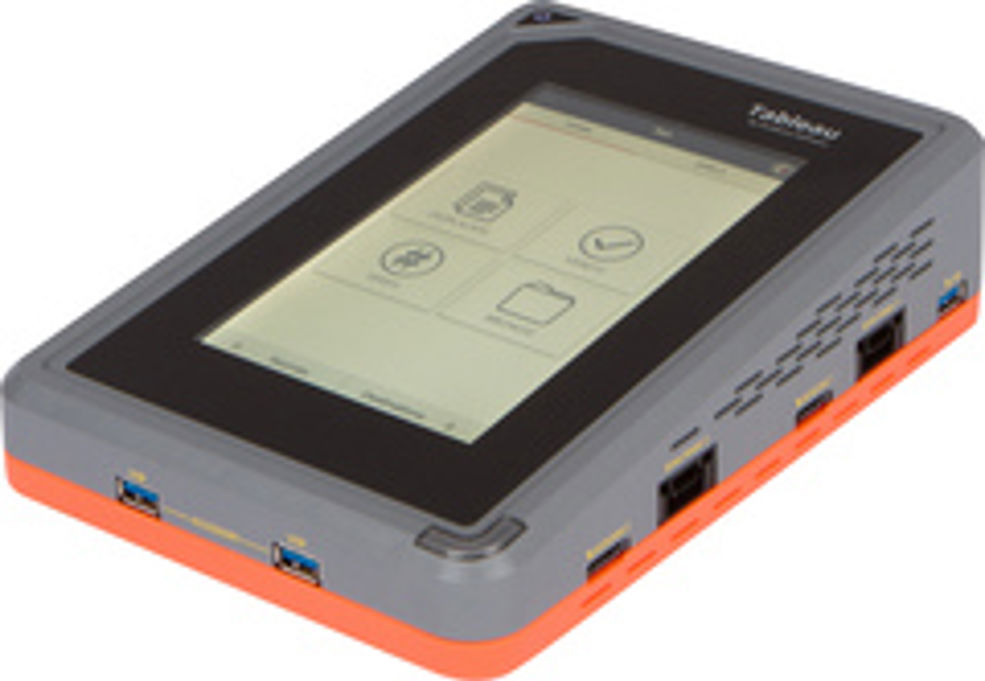

The Forensic Imager TX1, with a color touchscreen interface, provides forensic write blocking for IDE, SATA, SAS, USB3, and Firewire devices. It's the latest and greatest from Tableau and is a portable alternative to carrying a forensic workstation into the field. It is a network-enabled, fully-forensic imager that offers superior local and network imaging performance with no compromises, and covered by a 3 year warranty.

TX1 sets the standard for next-generation Forensic Imaging - and it's easy to see why. One look and you will notice the stylish design of the TX1 that finally brings digital forensic products into the twenty-first century. It features a beautiful and intuitive user interface on a tablet-sized touch-screen, providing a delightful user experience. The TX1 is also a behemoth under the hood, making it the fastest and most powerful forensic imager on the market. Additional features include:

  • Superior local and 10 GbE network imaging performance without compromises
  • Images SATA, USB 3, PCIe, SAS, FireWire 800, IDE (with optional IDE Adapter), and network shares
  • Outputs to SATA, USB 3, SAS, and network shares
  • Supports up to two active "forensic" jobs at a time (simultaneous imaging)
  • Job queuing option for efficiency and convenience
  • Up to four destinations per source with the ability to mix clone/image duplication and local/network destinations
  • Media Utility options of: view drive details, wipe, format, blank check, view & disable HPA/DCO, whole disk encryption, view S.M.A.R.T., and eject media
  • On screen real-time notifications/feedback with audible feedback options
  • Status LED provides device status information
  • Packaged in removable foam inserts custom-built to drop into a Pelican 1500 hard case
  • Free firmware updates

PCIE SOLUTIONS
Digital investigators need to be prepared for all types of storage media, and that now includes PCIe SSDs. Tableau has introduced multiple new PCIe-compatible products that leverage PCIe architecture to maximize performance by simply adapting to a new form factor rather than adapting through slower media alternatives.

A PCIe Adapter is required for PCIe drive operations. Current available PCIe Adapters include:

TDA7-1 Tableau PCIe Card Adapter

TDA7-2 Tableau PCIe M.2 SSD Adapter

TDA7-3 Tableau PCIe Adapter for Apple SSD

TDA7-4 Tableau PCIe U.2 SSD Adaptor cable

TDA7-7 Tableau PCIe Apple 2016+ SSD Adaptor

TDA-7-5 Tableau IDE Adaptor

Adaptors sold SEPARATELY



More information about this product? Please contact us.
